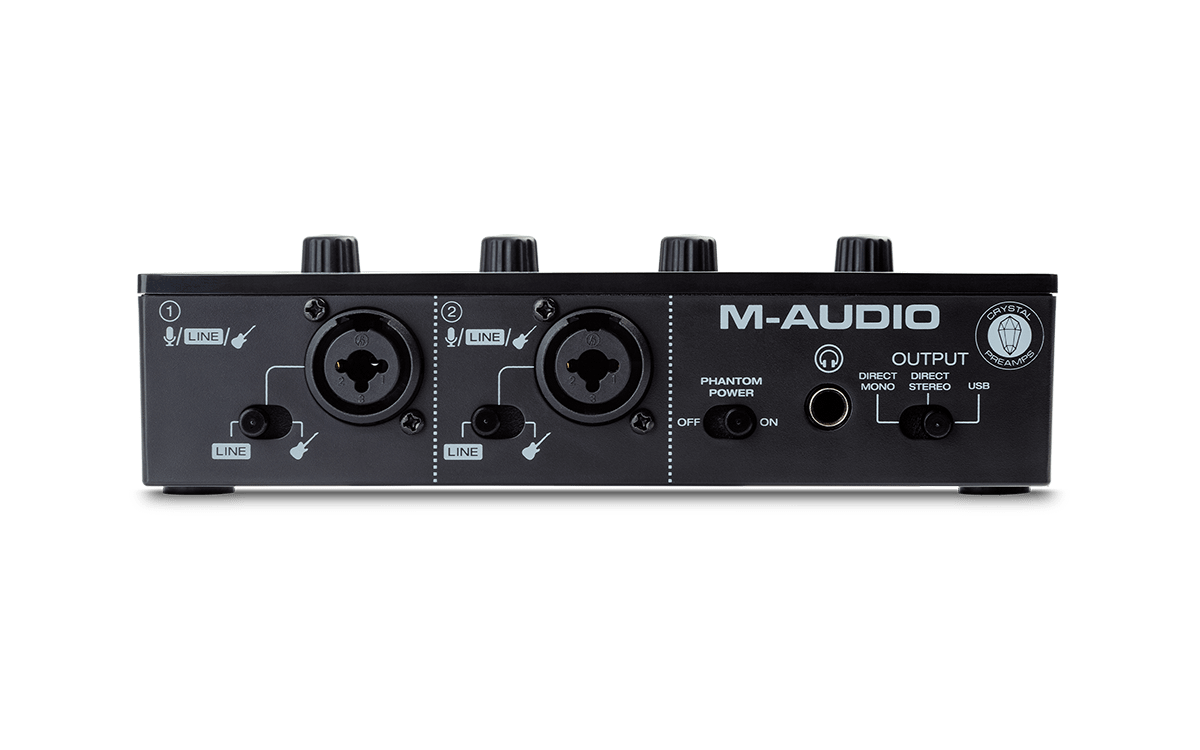

M-TRACK DUO Audio Interface

  • 2-Channel USB recording interface for Mac and PC
  • (2) Combo inputs with Crystal Preamps amazing audio quality
  • Dedicated switches to enable any microphone, instrument, or line level device
  • +48V phantom power for connecting studio condenser microphones
  • Stereo 1/4” outs; 1/4” headphone out with independent level controls
  • USB/Direct Mono/Direct Stereo switch for monitoring mic, line or instrument inputs in stereo or mono



Model : M-AUDIO M-TRACK DUO




ENQUIRY

Description

M-AUDIO M-TRACK DUO Audio Interface :

Mic Input (balanced XLR)

Frequency Response 20 Hz – 20 kHz (+0.1 dB)
Signal-to-Noise Ratio 109 dB (A-weighted)
THD+N 0.003% (min. gain, 0 dBu out, A-weighted)
Preamp EIN -128 dBu (max. gain, 40 Ω source, A-weighted)
Gain Range Direct Mono: 0 dB to +54 dB Direct Stereo: 6 dB to +60 dB

Line Input (balanced 1/4″ [6.35 mm] TRS)

Frequency Response 20 Hz – 20 kHz (+0.1 dB)
Sensitivity -43 dBu
THD+N 0.002% (min. gain, 0 dBu out, A-weighted)
Gain Range Direct Mono: -10 dB to +44 dB Direct Stereo: -4 dB to +50 dB

Instrument Input (unbalanced 1/4″ [6.35 mm] TS)

Frequency Response 20 Hz – 20 kHz (+0.1 dB)
THD+N 0.005% (min. gain, 0 dBu output, A-weighted)
Input Impedance 1 MΩ
Gain Range Direct Mono: -10 dB to +44 dB Direct Stereo: -4 dB to +50 dB

Main Outputs, L and R (impedance-balanced 1/4″ [6.35 mm] TRS

Frequency Response 20 Hz – 20 kHz (+0.1 dB)
Signal-to-Noise Ratio 109 dB (A-weighted)
THD 0.002% ( 0 dBu out, A-weighted)
Max Output Level +4 dBu

Headphone Output (1/4” [6.35 mm] TRS)

Power 60 mW/Ch, 32 Ω
Frequency Response 20 Hz – 20 kHz (+0.5 dB)
THD+N 0.02% (A-weighted)
Signal-to-Noise Ratio 100 dB (A-weighted)

Software

Software Bundle included MPC Beats, AIR Music Tech Electric, Bassline, and TubeSynth, Revalver guitar amp plugin and 80 AIR plugin effects.
