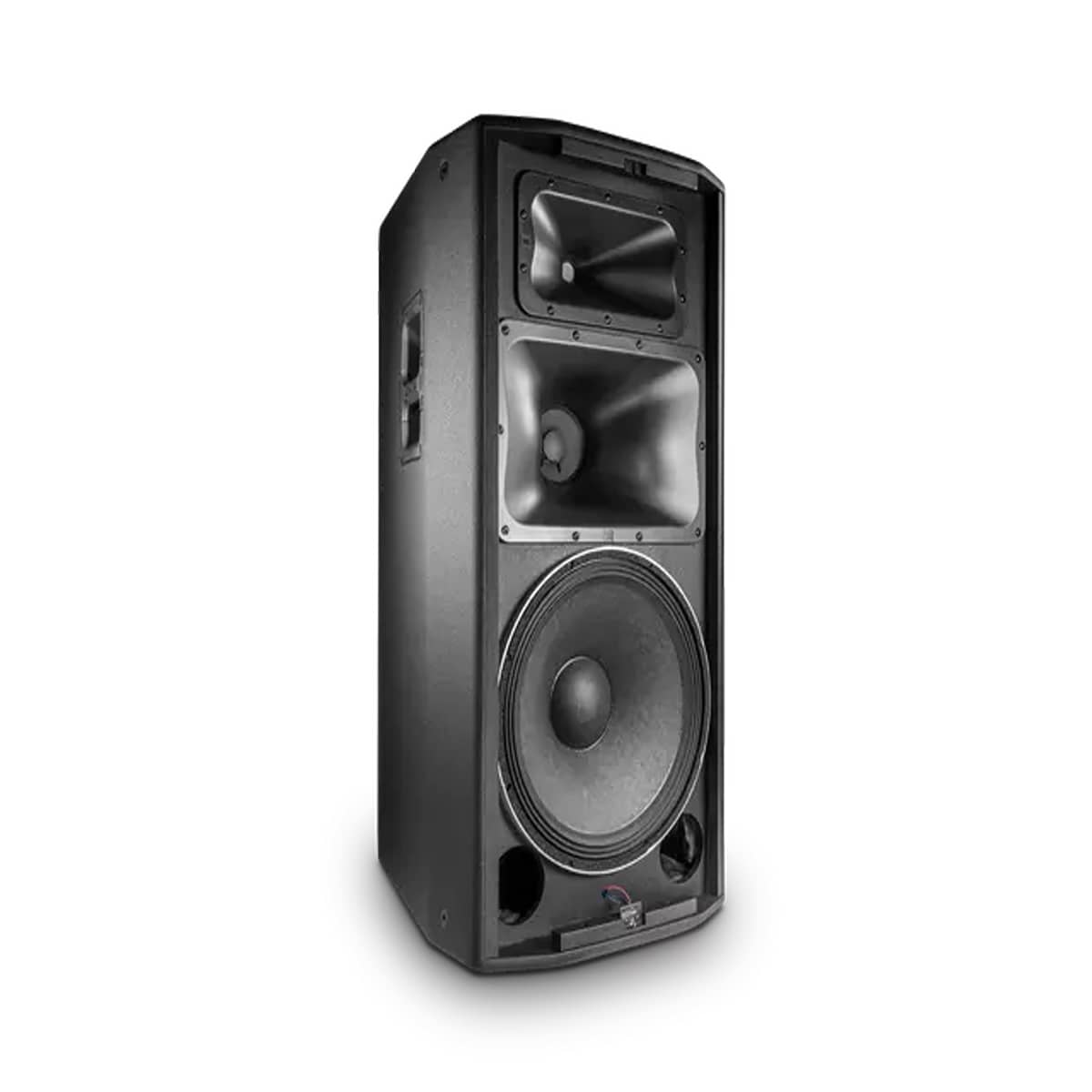

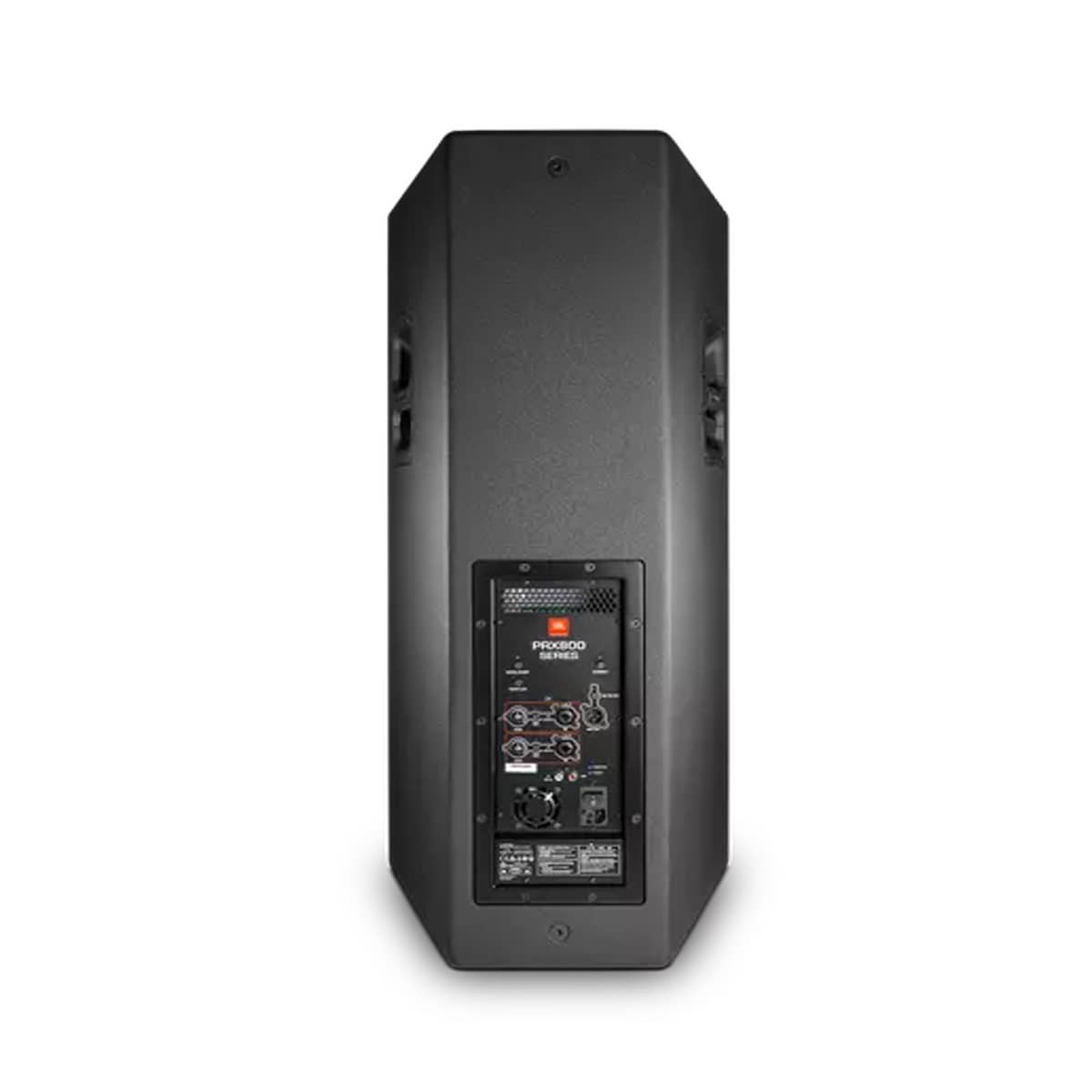

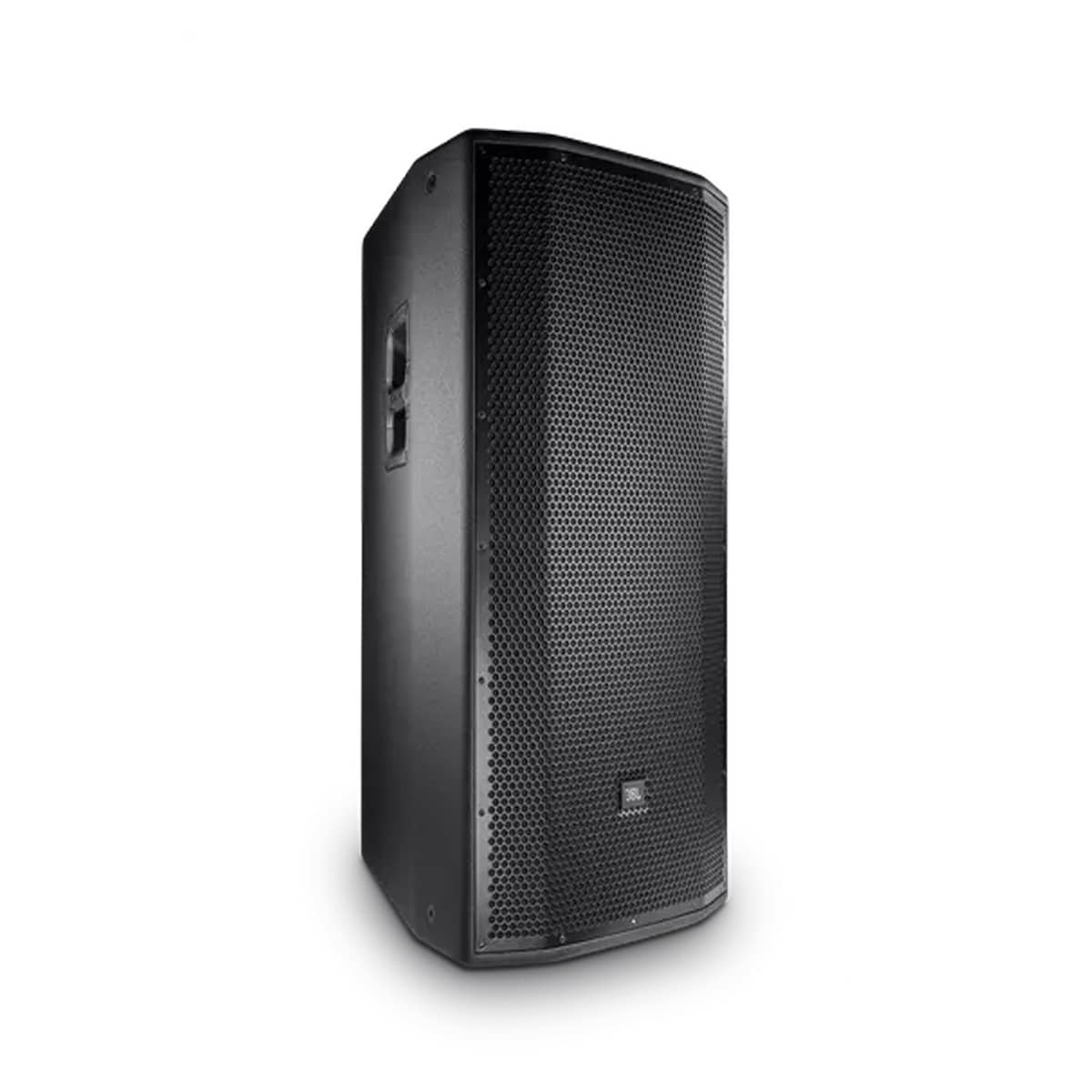

JBL PRX835 Speaker

15” Three-Way Full-Range Main System/Floor Monitor with Wi-Fi

Model : JBL-PRX-835




ENQUIRY

Description

JBL PRX835 Powered PA Speakers :

System Type : Self Powered 15”, three-way, bass-reflex

Maximum SPL Output : 138 dB

Frequency Range (-10dB) : Normal: 35 Hz – 20 kHz Boost: 34 Hz – 20 kHz

Frequency Response (±3 dB) : Normal: 42 Hz – 20 kHz Boost: 39 Hz – 20 kHz

Signal Indicators : Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal : Green LED indicates signal present Power: Blue indicates system has power and ready to pass audio

Dynamic Control (Input) : dbx Type IV™ limiter circuit

Crossover Frequency : 580 Hz, 2.1 kHz

Design : Highly efficient Class-D amplifier

Power Rating : 1500W (750W x 2)

AC power input : 100V – 240V ~ 50/60 Hz

LF Driver : 1 x JBL 275G 380mm (15 in) woofer

MF Driver : 1 x JBL 196H 165 mm (6.5 in) horn-loaded midrange transducer

HF Driver : 1 x JBL 2408H-2 37.5 mm (1.5”) annular polymer diaphragm, neodymium compression driver

Coverage Pattern : 90° x 50° nominal

Directivity Index (DI) : 10.5 dB

Directivity Factor (Q) : 11.2

Suspension / Mounting : 12 x M10

Transport : 2 x injection molded handle with backing cup

Finish : Obsidian DuraFlex™ finish

Grille : Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.

Mic Inputs : 2

Phantom Power : No

EQ : User selectable presets for Normal or Boost, Advanced EQ settings available using Wi-Fi and PRX Connect application.

Effects : 25 parametric EQ’s and speaker delay

Inputs : 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input

Input Impedance : 20K Ohms (balanced), 10K Ohms (unbalanced)

Outputs : 1 x XLR (mix out)

Enclosure : Trapezoidal, 18 mm, Duraflex coated plywood

Dimensions (H x W x D) : 938mm x 446mm x 539mm (36.9in x 17.5in x 21.2in)
