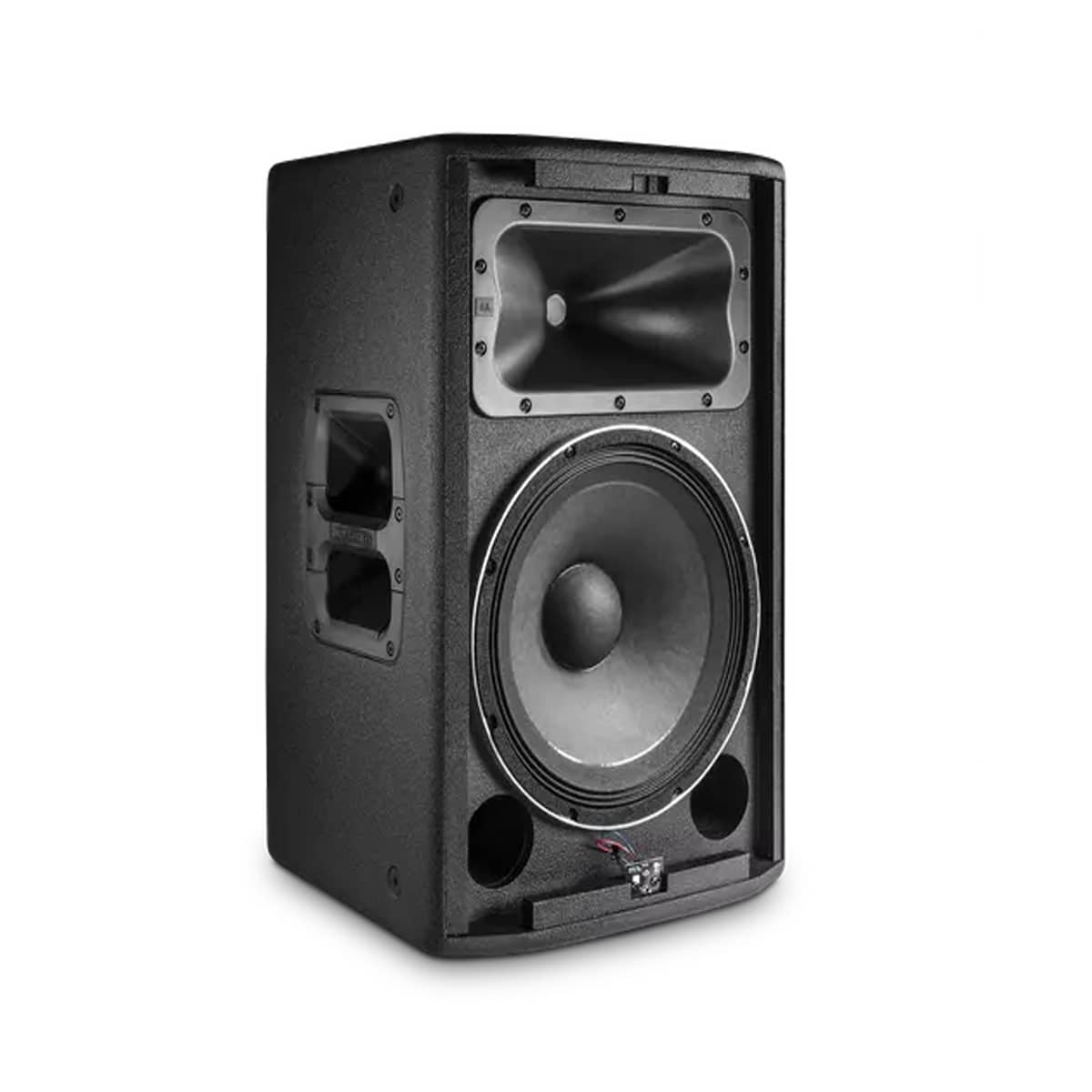

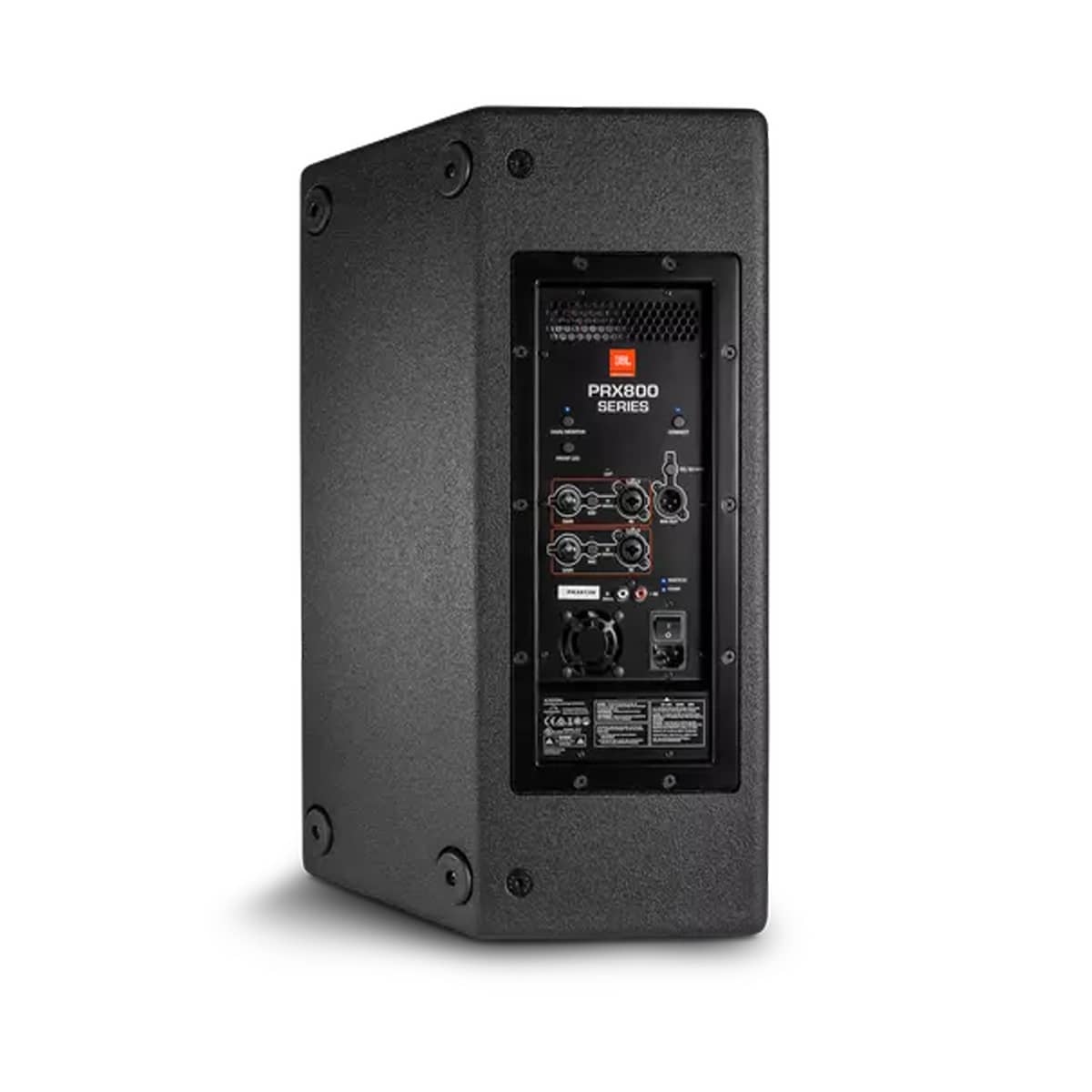

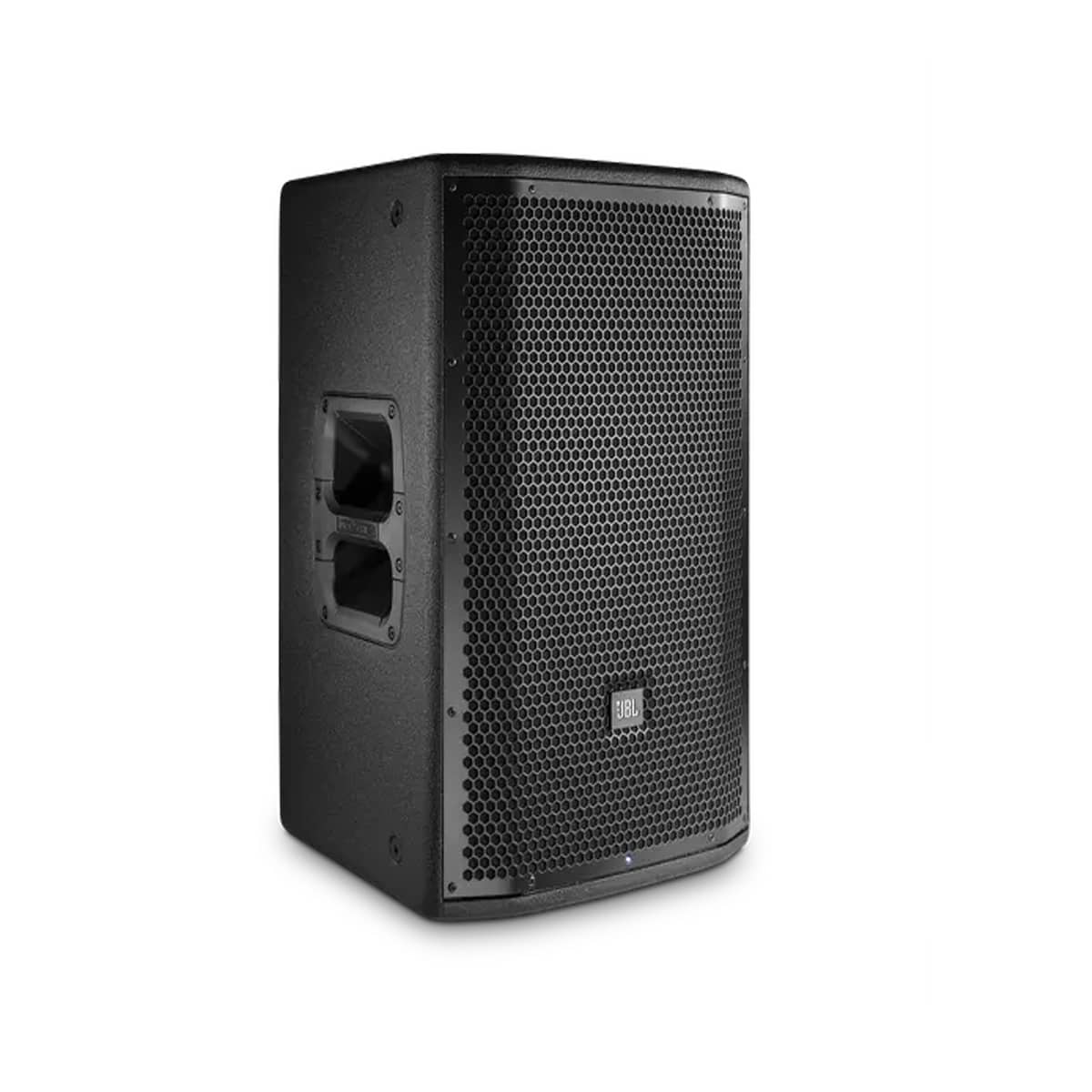

JBL PRX812 Powered Speaker :
System Type : Self Powered 12”, two-way, bass-reflex
Maximum SPL Output : 135 dB peak
Frequency Range (-10dB) : Main: 44.8 Hz – 20 kHz Monitor: 44.8 Hz – 20 kHz
Frequency Response (±3 dB) : Main: 55.7 Hz – 20 kHz Monitor: 56.5 Hz – 20 kHz
Signal Indicators : Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal : Green LED indicates signal present Power: Blue indicates system has power and ready to pass audio
Dynamic Control (Input) : dbx Type IV™ limiter circuit
Crossover Frequency : 1.85 kHz
Design : Highly efficient Class-D amplifier
Power Rating : 1500W (750W x 2)
AC power input : 100V – 240V ~ 50/60 Hz
LF Driver : 1 x JBL 272G 305 mm (12 in) woofer
HF Driver : 1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver
Coverage Pattern : 90° x 50° nominal
Directivity Index (DI) : 10.2 dB
Directivity Factor (Q) : 10.4
Suspension / Mounting : Dual 36 mm pole socket, 12 x M10 Suspension Points
Transport : 1 x injection molded handle with backing cup
Finish : Obsidian DuraFlex™ finish
Grille : Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
Mic Inputs : 2
Phantom Power : No
EQ : User selectable presets for Main or Monitor position, Advanced EQ settings available using Wi-Fi and PRX Connect application
Effects : 25 parametric EQ’s and speaker delay
Inputs : 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
Input Impedance : 20K Ohms (balanced), 10K Ohms (unbalanced)
Outputs : 1 x XLR (mix out)
Enclosure : Asymmetrical, 18 mm, Duraflex coated plywood
Dimensions (H x W x D) : 599mm x 385mm x 341mm (23.6in x 15.1in x 13.4in)
