Description

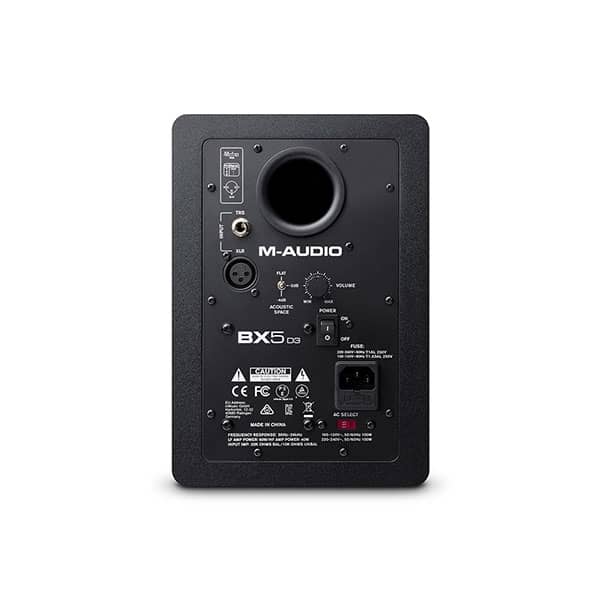

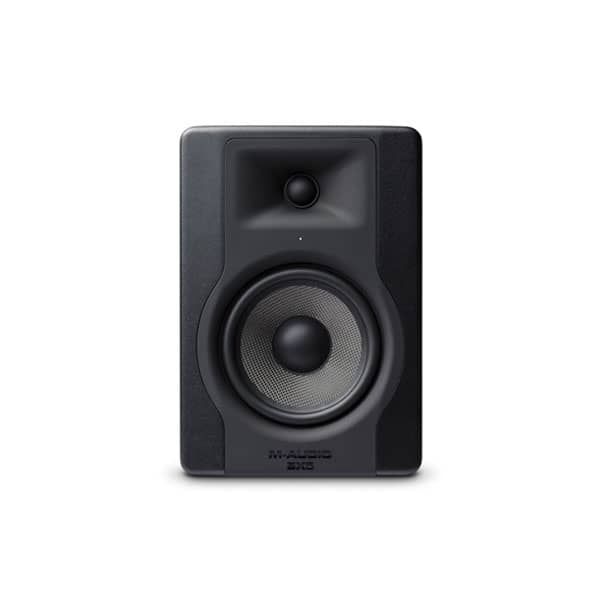

M-AUDIO BX5 D3 Studio Monitor :
| TYPE | 2-way near-field studio reference monitors |
| LOW FREQ. DRIVER | 5 inch (127mm) Kevlar curved cone with high temperature voice coil and damped rubber surround. Magnetically shielded |
| HIGH FREQ. DRIVER | 1 inch (25mm) magnetically shielded natural silk dome |
| FREQUENCY RESPONSE | 52 Hz – 35 kHz |
| CROSSOVER FREQUENCY | 2.5kHz |
| LOW FREQ. AMPLIFIER POWER | 60W |
| HIGH FREQ. AMPLIFIER POWER | 40W |
| MAXIMUM PEAK SPL | 110 dB SPL – Full Bandwidth Pink Noise Measured |
| INPUT SENSITIVITY | -10dBU |
| INPUT CONNECTORS | 1x XLR balanced input connector 1x TRS balanced/unbalanced input connector |
| INPUT IMPEDANCE | 10kΩ balanced, 20kΩ unbalanced |
| POLARITY | Positive signal at + input produce outward LF cone displacement |
| PROTECTION | RF interference, output current limiting, over temperature, turn on/off transient, subsonic filter, external mains fuse |
| POWER | Voltage: 100–120V, 50/60 Hz / 220–240V, 50/60 Hz Consumption: 100W |
| FUSE | 220–240V~ T1AL 250V / 100–120V~ T1.6AL 250V |
| CABINET | Vinyl-laminated high-acoustic-efficiency MDF |
| DIMENSIONS(WIDTH X DEPTH X HEIGHT) | 6.9” x 7.8” x 10” / 176 x 197 x 254 mm |
| WEIGHT | 12.3 lbs, 5.6kg |
